Hardwired vs NEMA 14-50 EV Charger: How to Choose

Hardwired vs NEMA 14-50 EV charger: how to choose

Both a hardwired Level 2 unit and a NEMA 14-50 outlet are real ways to charge at home in Bend. Here's how the run length, the amperage you want, and whether you'd ever unplug the unit decide which one fits your house.

Bend EV Charger Crew

Local licensed electricians serving Deschutes County · Bend, OR

(541) 555-8877

Hardwire your EV charger if you want the highest continuous amperage, a clean permanent install, or a long run; choose a NEMA 14-50 outlet if you value the flexibility to unplug a portable EVSE and move it, charging up to about 40 amps. The run length and your target amperage decide. Either way it's the same engineering — a dedicated 240V circuit sized to 125 percent of the continuous draw, permitted and inspected.

The short version

A hardwired unit is wired straight to the circuit and can run a higher continuous amperage than an outlet allows, which makes it the choice for the fastest home charging or a clean permanent install. A NEMA 14-50 outlet is a 240V receptacle you plug a portable EVSE into, giving you the flexibility to unplug, swap, or move the unit, at up to roughly 40 amps. For most Bend drivers both deliver plenty of overnight charge; the decision is about amperage and flexibility, not whether one "works" better.

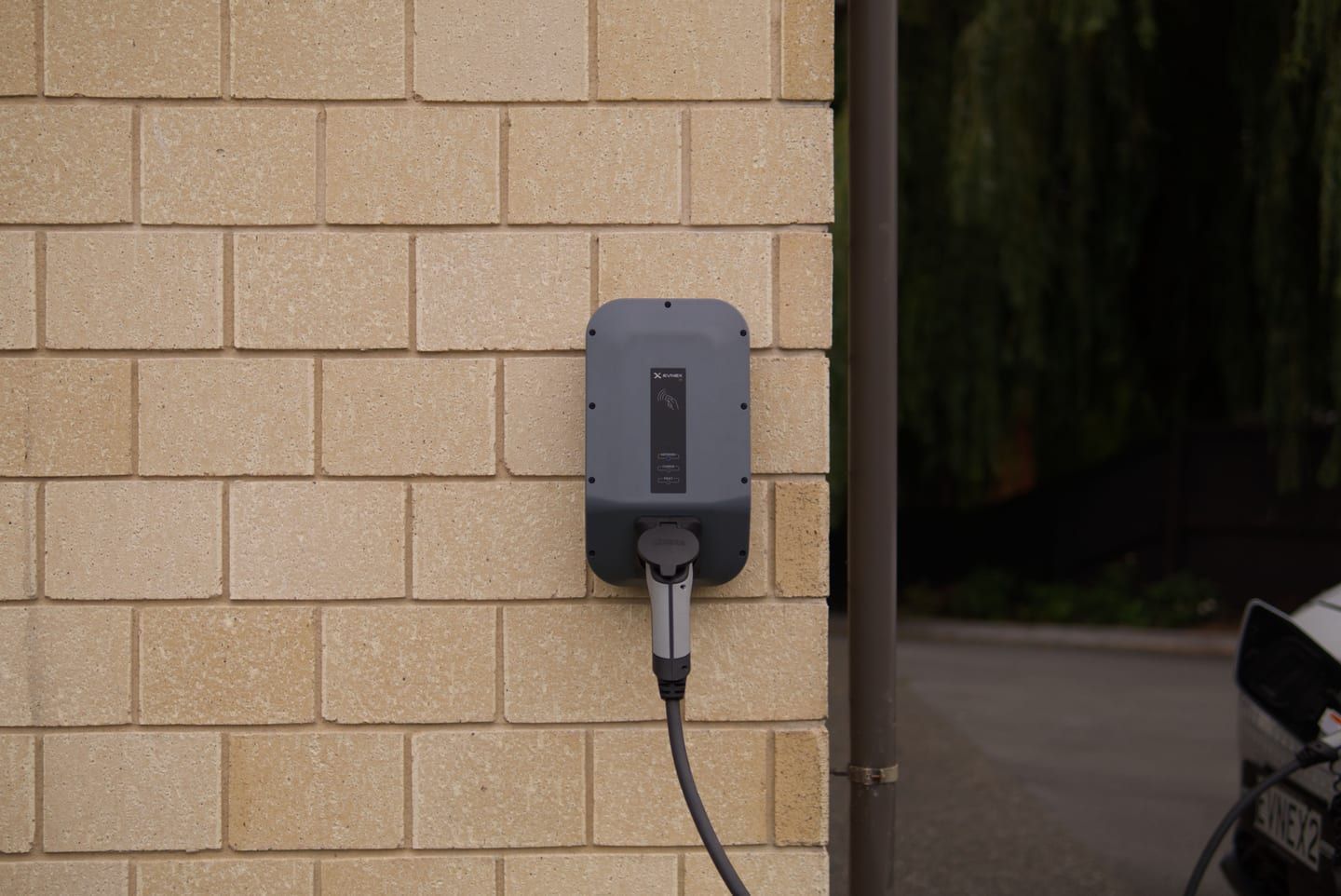

A hardwired Level 2 EV charger mounted on a garage wall — A hardwired Level 2 unit wired straight to the circuit can run a higher continuous amperage and is the clean choice for a permanent install or the fastest home charging in a Bend garage.

When to hardwire

Hardwire when you want the maximum charging speed your panel supports — a hardwired unit can be set to a higher continuous amperage than a 14-50 outlet, for example 48 amps on a 60-amp circuit. It's also the cleaner call for a long run, an outdoor install where you'd rather not have an exposed outlet, or simply a permanent setup you don't plan to move. If fast turnaround between trips matters, hardwiring is usually the answer.

A NEMA 14-50 outlet with a portable EV charger plugged in — A NEMA 14-50 outlet lets you plug in a portable EVSE you can unplug and take with you, typically up to a 40-amp draw — flexibility over the absolute top charging speed.

When a NEMA 14-50 wins

A NEMA 14-50 outlet wins on flexibility. You can unplug a portable EVSE and take it to another home or garage with a matching outlet, swap to a different unit later, or keep a spare. At up to about 40 amps it's real Level 2 speed for most daily driving. If you rent, plan to move, or just like the option to relocate the charger, the outlet is usually the better fit even though a hardwired unit could charge slightly faster.

EV charger wire and conduit run sized for the circuit — Either way, the run length and wire gauge are the same engineering: a continuous EV load sized to 125 percent of the draw, with heavier wire for a long pull to a detached space.

Same circuit engineering, either way

Whichever you choose, the circuit work is the same: a dedicated 240V circuit, wire and breaker sized to 125 percent of the continuous draw, grounded and bonded, pulled on a permit and inspected. A long run to a detached garage needs a heavier wire gauge in both cases. The choice between hardwired and outlet doesn't change the load calc or the run — it changes the termination at the wall and the amperage ceiling.

How to decide

Start with two questions: how fast do you actually need to charge, and would you ever want to unplug the unit and move it. If the answers are "as fast as the panel allows" and "no," lean hardwired. If they're "fast enough is fine" and "maybe," lean 14-50. The amperage your panel can support is its own question — see what amperage EV charger do I need — and we'll confirm which install fits on the call. Either way we handle it as a Level 2 install or a NEMA 14-50 outlet, permitted and inspected.

Frequently Asked Questions

Should I hardwire my EV charger or use a NEMA 14-50 outlet?

Both are legitimate. Hardwire if you want the highest continuous amperage, a permanent clean install, or a long run — a hardwired unit can be set higher than an outlet allows. Choose a NEMA 14-50 outlet if you value flexibility: you can unplug a portable EVSE and move it, swap units, or take it to a new home, charging up to about 40 amps. The run length and your target amperage decide.

Does hardwiring charge faster than a 14-50 outlet?

It can, because a hardwired unit isn't limited by the outlet's rating and can run a higher continuous amperage — for example 48 amps on a 60-amp circuit, versus up to 40 amps on a 50-amp circuit for a 14-50. Whether that extra speed matters depends on your car and your daily driving. For most overnight charging, both are plenty; the difference shows up mainly if you need a fast turnaround between trips.

Is a NEMA 14-50 outlet cheaper?

Sometimes, but not by a guaranteed amount. The outlet is a simple device, and on a short run with a panel that has room, the install can be straightforward. But the cost still comes from the same places — the run distance, the wire gauge, and any panel work — so a long run or a panel upgrade can make either option cost more. The flexibility, not a fixed discount, is usually the reason to pick the outlet.

Can I move a portable charger between homes with a 14-50?

That's the main appeal. A portable EVSE with a NEMA 14-50 plug can move to any home or garage with a matching 14-50 outlet, which is handy if you rent, plan to move, or want a backup. A hardwired unit stays put. If portability matters to you, the outlet is usually the better call even if hardwiring would charge slightly faster.
